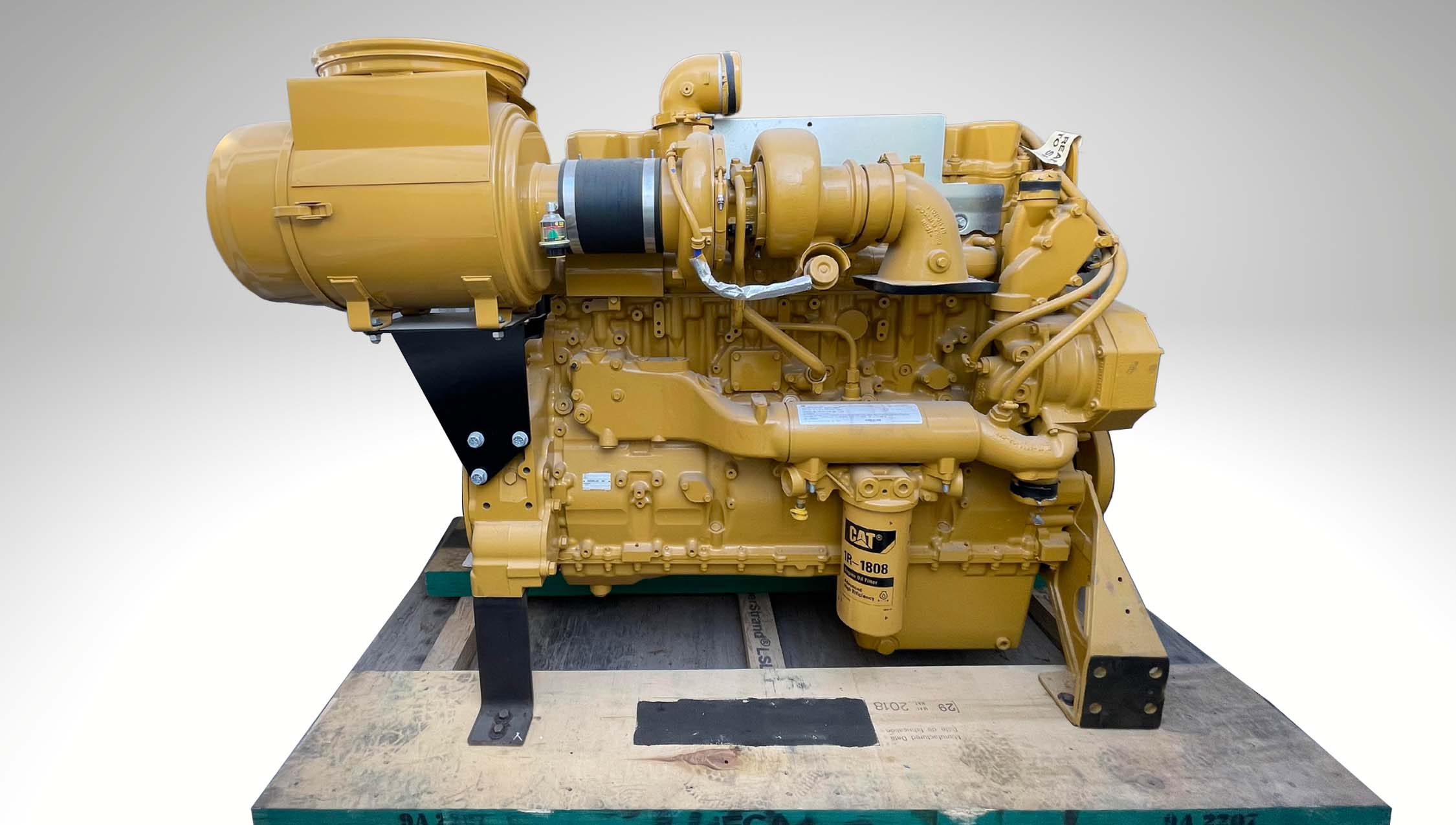

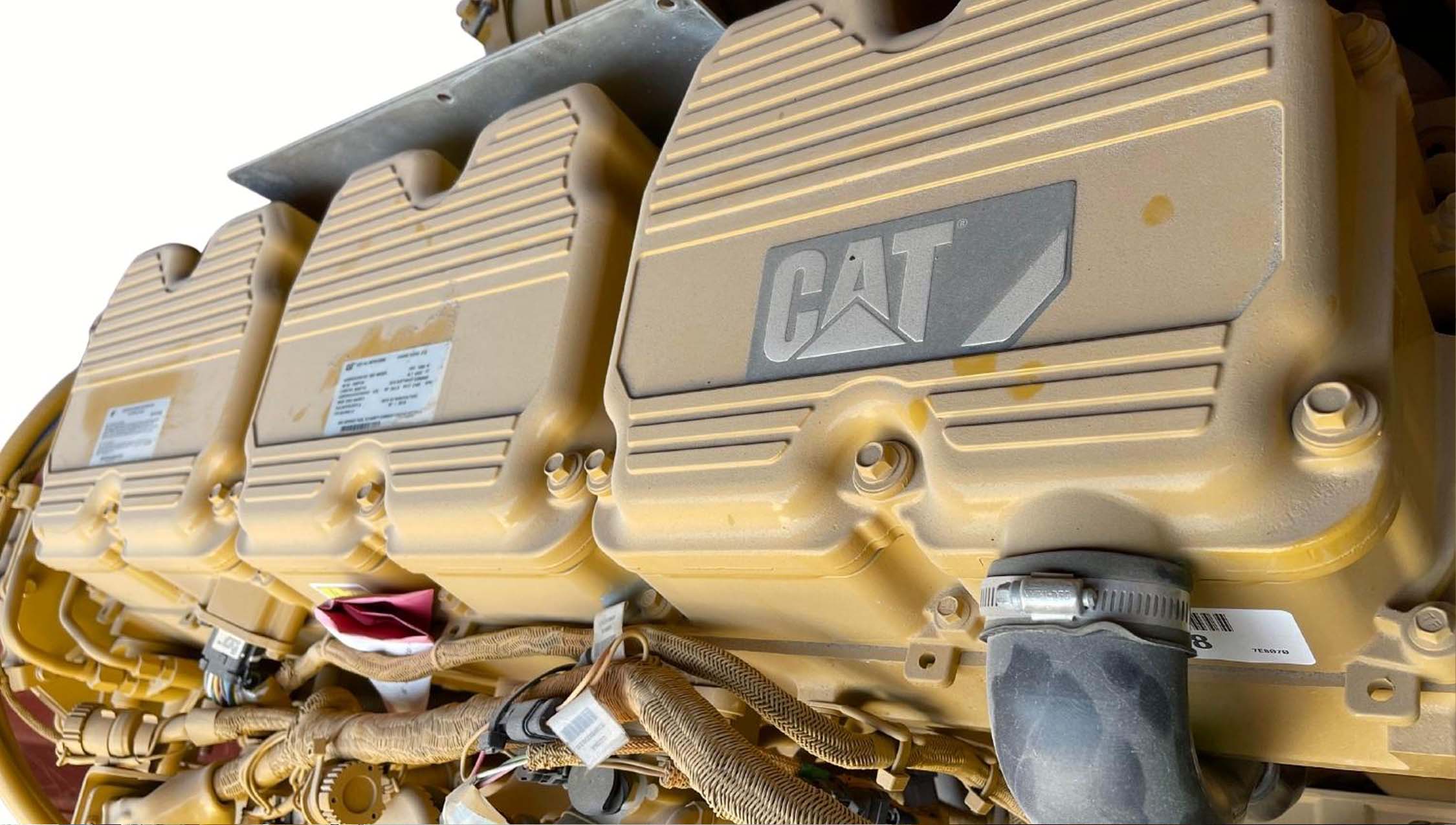

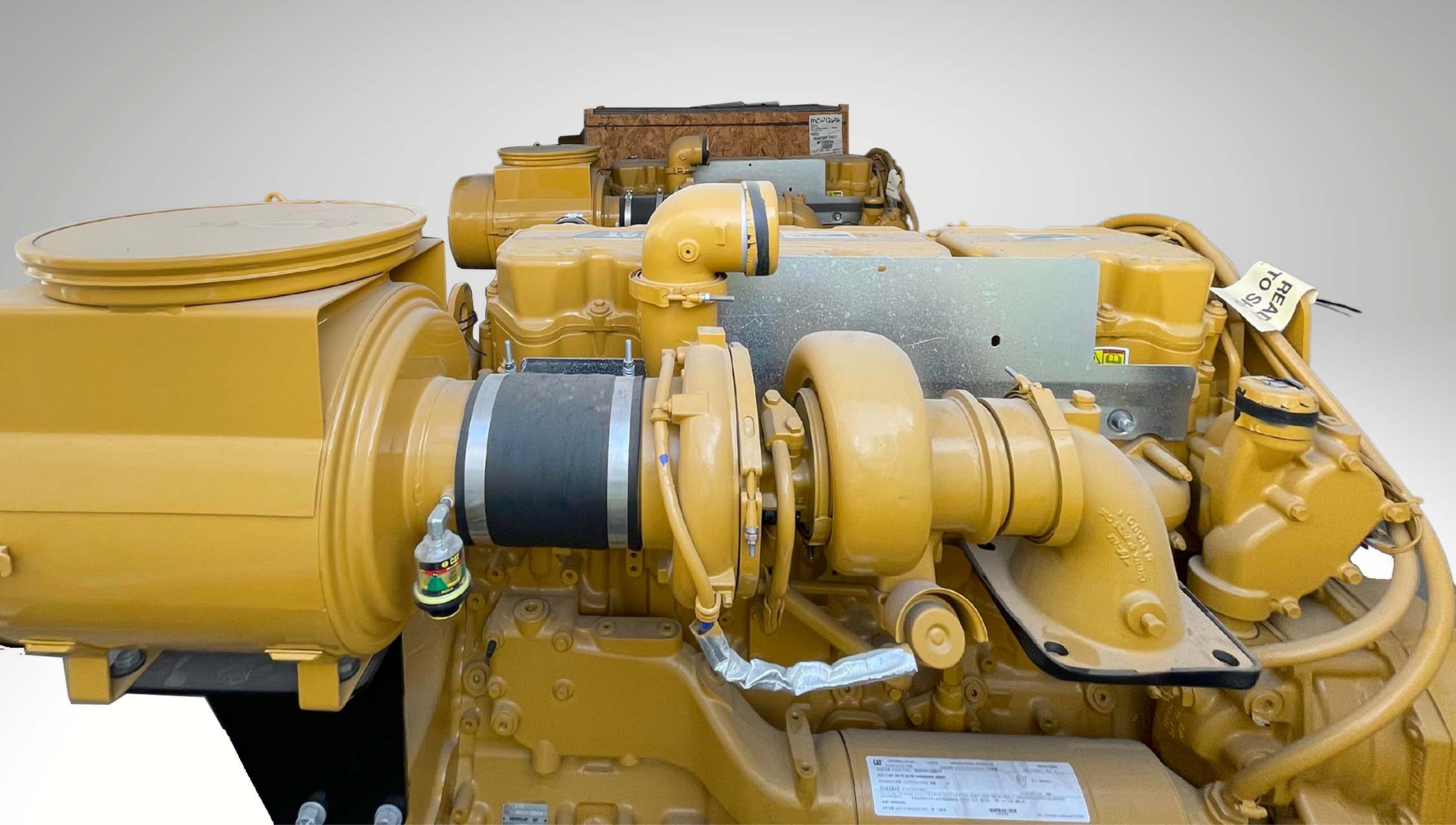

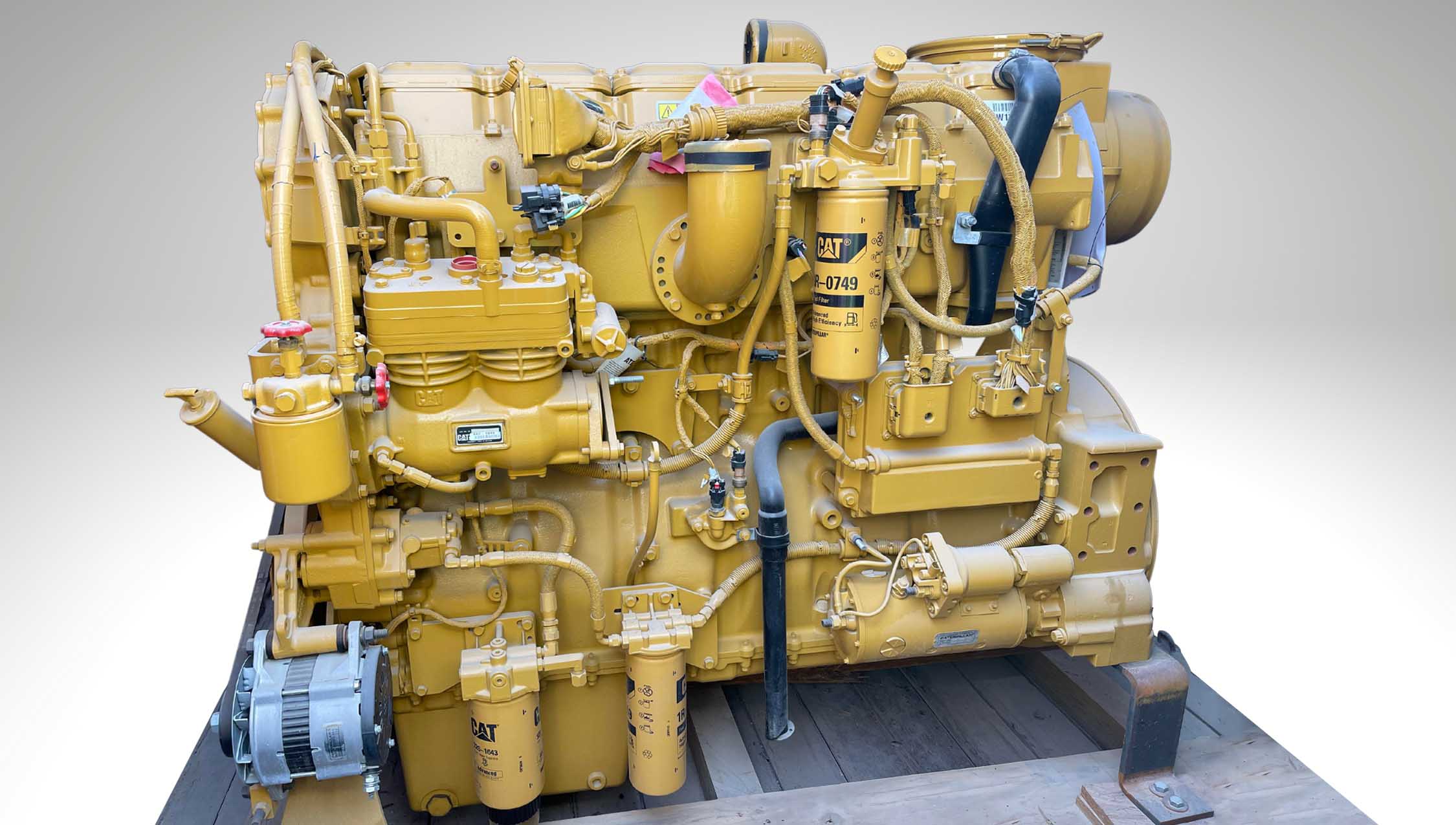

CAT C15 Industrial Diesel Engines
Dubai Port- United Arab Emirates
Description

Our company, Harmonious Energy Equipment Rental L.L.C (Heerental), Selling the new caterpillar c15 diesel engine. The Cat® C15 Industrial Diesel Engine is offered in ratings ranging from 354-433 bkW (475-580 bhp) @ 1800-2100 rpm. Industries and applications supplied by C15 engines include: agriculture, AG tractors, aircraft ground support, bore / drill rigs, chippers / grinders, companies / harvesters, compactors / rollers, compressors, construction, cranes, crushers, general Irrigation equipment, loaders / forwards, material handling, mining, mobile earthmoving equipment, pavement equipment, pumps, shovels / draglines, surface export equipment, trenches. If you have any queries, please contact us.

Air Inlet System
  • Turbocharged
  • Air-to-Air Aftercooled
  • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)
Control System
  • Electronic control system
  • Over-foam wiring harness
  • Automatic altitude compensation
  • Power compensated for fuel temperature
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated Electronic Control Unit (ECU)
  • Remote fan control
Cooling System
  • Thermostats and housing, vertical outlet
  • Centrifugal water pump
  • Guidance on cooling system design available through your dealer to ensure equipment reliability
  • Power compensated for fuel temperature
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated Electronic Control Unit (ECU)
  • Remote fan control
Fuel System
  • MEUI injection
  • Primary fuel filter
  • Secondary fuel filters
  • Fuel transfer pump
  • Electronic fuel priming
Lube System
  • Open crankcase ventilation system
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Oil dipstick
  • Gear driven oil pump
  • Choice of front, rear or center sumps
  • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)
General
  • Paint: Caterpillar yellow, with optional colors available at request
U.S. EPA Tier 4 Interim, EU Stage IIIB Aftertreatment / Clean Emissions Control Equipment
  • Cat Regeneration System
  • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
  • NOx Reduction System (NRS)
  • Flex pipe connection kit with 90° rotatable elbows to attach to Cat Regeneration System Inlet
  • Available in 12 volt or 24 volt systems
U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment
  • Cat Regeneration System
  • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
  • Aftertreatment Electronic Control Unit (ECU)
  • NOx Reduction System (NRS)
  • Pump Electronic Control Unit (PETU)
  • Selective Catalytic Reduction (SCR)
  • Available in 12V or 24V systems

Product Specifications for C15

  • Product Specifications for C15

    Power Rating
    Maximum Power 580 HP
    Maximum Torque 1958 lb-ft @ 1400 rpm
    Rated Speed 1800-2100 rpm
    Minimum Power 475 HP
    Emission Standards
    Emissions U.S. EPA Tier 4 Final
    General
    Engine Configuration In-Line 6
    Bore 5.4 in
    Stroke 6.7 in
    Displacement 927.6 in³
    Compression Ratio 17.0:1
    Aspiration Turbocharged-Aftercooled (TA)
    Combustion System Direct Injection
    Rotation from Flywheel End Counterclockwise
    Aftertreatment DOC+DPF+SCR
    Engine Dimensions - Approximate
    Length 56.6 in
    Width 38.1 in
    Height 49.1 in
    Weight - Net Dry - Basic Operating Engine Without Optional Attachments 3673 lb
    Aftertreatment Dimensions
    Length 45.4 in
    Width 43.8 in
    Height 25.7 in
    Weight 600 lb
    Aftertreatment Dimensions*
    Diameter 14 in
    PETU DIMENSIONS - TIER 4 FINAL ONLY
    Length 33.6 in
    Width 11.3 in
    Height 21.7 in
    Weight 42.8 lb
    Volume Capacity 51.1 qt (US)
Cat C15Availability Stock:14 Pcs
  • Engine Modelcaterpillar C15
  • ProductNew
  • Manufacture Date07/2018
  • Maximum Power:580 HP
  • Maximum Torque:1958 lb-ft @ 1400 rpm
  • Rated Speed:1800-2100 rpm
  • Minimum Power: 475 HP
