Drilling Rig

  • Man Portable Drilling Rig

    HD-15 Flush Drilling Rig

    HD-15 Flush Drilling Rig | Man Portable Drilling Rig | Manual Drilling Rig | Human power Drilling Rig | blast hole drilling rig | Onshore Drilling services | Offshore Dilling Rig | Seismic Accessory Rentals|
    HD-15

    Features of portable drilling rig:

    1. Applications: blast hole, seismic drilling on soft formation.
    2. Layout of main rig and operation mode: hand-disk power swivel drill, manpower pull up & down without rotary power
    3. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    4. Advantages: light weight, easy to operate and economical utility.

    Main Specification:

    Drilling method

    Depth

    Pipe(diameter×length)

    Hole diameter

    Mud drilling

    15 m

    φ42×1500

    75/90mm

    Air drilling/Hammer drilling

    15 m

    φ42×1500

    75/82mm

    Hand-disk power swivel

    Weight

    28 kg

    Disk radius

    800~1250mm Options

    Centrifugal pump set / Standard

    Displacement

    680 L/min

    Pump head

    27 m

    Gasoline engine power

    6.5 hp

    Weight

    31 kg

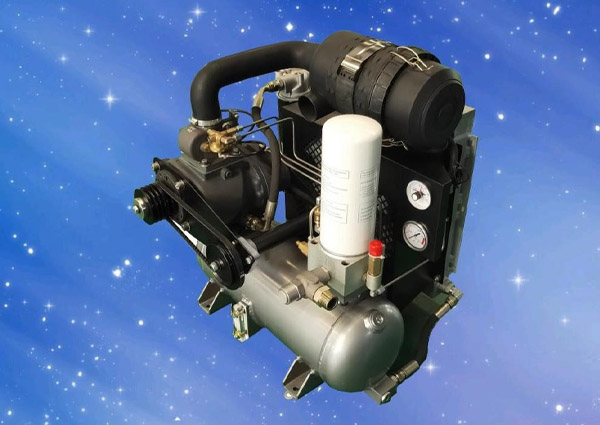

    Air screw compressor set /Options

    Displacement

    3.2 M3/min

    Pressure

    7 bar

    Gasoline engine power

    38 hp

    Weight

    196 kg

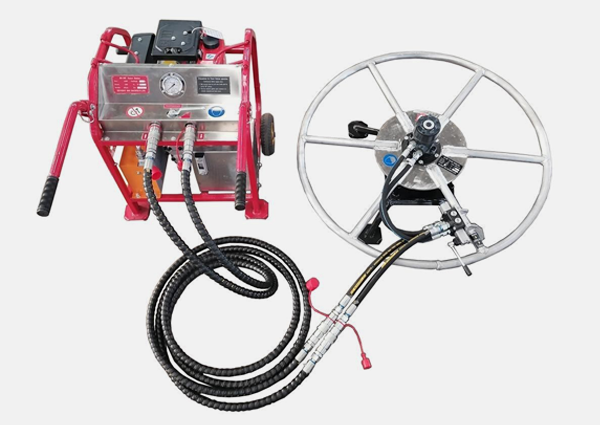

    HD-15A/B Top-Drive Flush Drilling Rig

    HD-15A/B Top-Drive Flush Drilling Rig | For Rental | Rental Company | For Lease | Seismic Accessory Rentals | Seismic Drilling Equipment| Geophysical Drilling Equipment | Oil and Gas Source finder | Drilling machine Supplier | Drilling machine Rental Company
    HD-15A/B

    Features of drilling rig:

    1. Hydraulic power station: include engine, hydraulic pump, hydraulic oil tank, overflow valve and accessory. Engine directly drives hydraulic pump.
    2. The hand-held disc includes disc, hydraulic motor, reversing valve, and swivel. Seal of swivel can be adjusted.
    3. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    4. Applications: the blast hole, seismic shot hole
    5. Advantages: light weight, easy to operate, faster and economical utility.

    Main Specification:

    Drilling method

    Depth

    Pipe(diameter*length)

    Hole diameter

    Mud drilling

    15m

    φ60*3.5*1500

    75/90mm

    Air drilling/Hammer drilling

    15m

    φ60*3.5*1500

    75/82mm

    Hand-disk power swivel

    Torque

    270 N.m

    Rotate speed

    0~148 r/min

    Weight

    28 kg

    Disk radius

    800~1250mm Options

    Hydraulic pumping  station

    Working pressure

    200 bar

    Station power

    9hp

    Station weight

    82kg /Diesel engine

    60kg / Gasoline engine

    Four-Hand trolley for move

    Centrifugal pump set / Standard

    Displacement

    680 L/min

    Pump head

    27 m

    Gasoline engine power

    6.5 hp

    Weight

    31 kg

    Air screw compressor set /Options

    Displacement

    3.2 M3/min

    Pressure

    7 bar

    Gasoline engine power

    38 hp

    Weight

    196 kg

    HD-15D Air Motor Top-Drive Flush Drilling Rig

    HD-15D  Air Motor Top-Drive Flush Drilling Rig | Man Portable Drilling Rig |  Geophysical Drilling Equipment | Oil and Gas Source finder | Drilling machine Supplier | Drilling machine Rental Company | Dubai | UAE
    HD-15D

    Features of drilling rig:

    1. Drilling rig works with air station. Air operated distribution valve controls air motor to rotate drilling tools.
    2. The hand-held disc include disc, air motor, reversing valve and swivel.
    3. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    4. Applications: the blast hole, seismic shot hole
    5. Advantages: light weight, easy to operate, faster and economical utility.

    Main Specification:

    Drilling method

    Depth

    Pipe (diameter×length)

    Hole diameter

    Air drilling/Hammer drilling

    15 m

    φ60*3.5*1500

    75/82mm

    Hand-disc power swivel

    Torque

    300 N.m

    Rotate speed

    0~140 r/min

    Weight

    41 kg

    Disk radius

    800~1250mm Options

    Compressor Station

    Displacement

    5.2-6.4 m³/min

    Pressure

    7 bar

    HD 20B Man Portable Drilling Rig

    HD 20B Man Portable Drilling Rig | Geophysical Seismic Equipment | For Rent | Rental Company | Leasing Company | Oil and Gas Equipment Supplier | 15 Meter Mud drilling Equipment | Air drilling/Hammer drilling
    HD-20B

    All of our modular designed portable drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of portable drilling rig:

    1. This portable drilling rig is applicable to work in mountains, loess, hills, plain, forests, Gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects.
    2. Optional drilling methods includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling, casing drilling (with casing puller) and reverse circulation drilling. Adapt to different drilling operation with relative drilling method according to field formation.
    3. Modular designed structure achieves assembling and disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices. So it is convenient to carry.
    4. The system chooses Gear hydraulic pump, HAWE hydraulic valve and WHITE/DANFOSS/EATON hydraulic motor. Hydraulic system assures and improves the operating reliability and safety of drilling rig.
    5. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensures perpendicularity of the hole.
    7. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth

    Pipe (dia.*len.)(mm)

    Explosive method

    Hole dia.(mm)

    Mud drilling

    20

    φ50x1500

    After lifting the drills

    3”, 3.5”

    Air(Hammer) drilling

    20

    φ50x1500

    After lifting the drills

    68/82

    Casing drilling

    15

    φ50x1500+

    φ102x1500

    Center of the casing

    108

    Power swivel

    Rated torque

    600 N.m

    Rated rev.

    0~113 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    1200 kg

    Max. Push-down Force

    2 kN

    Max. hoisting speed

    0.6 m/s

    Hydraulic system

    Working pressure

    175 bar

    Engine power (Gasoline)

    14 hp/3600r/min  Kohler engine (Diesel engine as option)

    Weight

    Max weight of part

    ≤74 kg

    Total weight

    ≤213 kg/4parts

    Overall dimension

    When working 1000×800×2750 approximately

    HD-30 Man Portable Drilling Rig

    HD-30 Man Portable Drilling Rig | 30 Meter Mud Drilling machine | Drilling Equipment | Man Portable Drilling Rig | Air drilling
    HD-30

    All of our modular designed portable drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of portable drilling rig:

    1. This portable drilling rig is applicable to work in mountains, loess, hills, plain, forests, Gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects.
    2. Optional drilling methods includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling, casing drilling (with casing puller) and reverse circulation drilling. Adapt to different drilling operation with relative drilling method according to field formation.
    3. Modular designed structure achieves assembling and disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices. So it is convenient to carry.
    4. The system chooses Gear hydraulic pump, HAWE hydraulic valve and WHITE/DANFOSS/EATON hydraulic motor. Hydraulic system assures and improves the operating reliability and safety of drilling rig.
    5. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensures perpendicularity of the hole.
    7. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth

    Pipe (dia.*len.) (mm)

    Drilling bit

    Mud drilling

    30 m

    φ50×3×1500

    75/90mm

    Air drilling

    30 m

    φ50×3× 1500

    75/82mm

    Auger drilling

    15 m

    φ50×φ90×1500

    90mm

    Casing drilling

    20 m

    Ф102×Ф60×1500mm

    105mm

    Power swivel

    Rated torque

    800 N.m

    Rated rev.

    0~140 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    1500 kg

    Max. Push-down Force

    4 kN

    Max. hoisting speed

    0.77 m/s

    Hydraulic system

    Working pressure

    200 bar

    Engine power

    23hp / 3600r/min

    Weight

    Max weight of part

    ≤78 kg

    Total weight

    ≤272.5 kg

    Overall dimension

    When working  1250×1000×2800 approximately

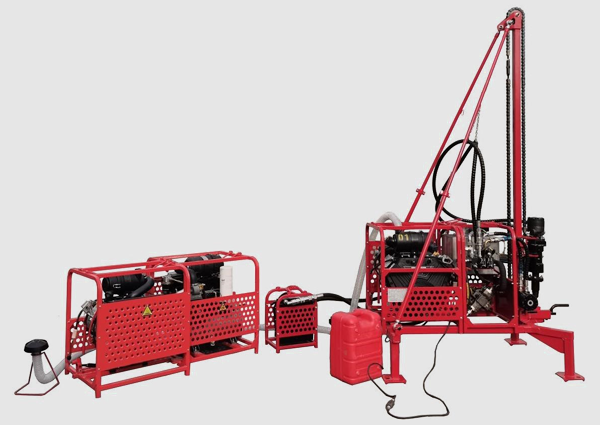

    HD-40A Man Portable Drilling Rig

    HD-40A Man Portable Drilling Rig | 40 meter Mud Drilling Equipment | Seismic Geophysical Equipment | Man Portable Drilling Rig | For Rent| Rental Company | For Lease | Oil and Gas Services
    HD 40A

    All of our modular designed portable drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of portable drilling rig:

    1. This portable drilling rig is applicable to work in mountains, loess, hills, plain, forests, Gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects.
    2. Optional drilling methods includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling, casing drilling (with casing puller) and reverse circulation drilling. Adapt to different drilling operation with relative drilling method according to field formation.
    3. Modular designed structure achieves assembling and disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices. So it is convenient to carry.
    4. The system chooses REXROTH hydraulic pump, HAWE hydraulic valve and WHITE/DANFOSS hydraulic motor. Hydraulic system assures and improves the operating reliability and safety of drilling rig.
    5. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensures perpendicularity of the hole.
    7. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth

    Pipe (dia.*len.) (mm)

    Drilling bit

    Mud drilling

    40 m

    φ60×1500

    75/90mm

    Air drilling

    40 m

    φ60×1500

    75/82mm

    Auger drilling

    20 m

    φ50×φ90×1500

    90mm

    Casing drilling

    30 m

    Ф108×Ф60×1500mm

    110mm

    Pipe (dia.*len.)

    (mm)

    Ф60×4×1500 mm   After lifting the drills

    Ф107×Ф70×1500 mm   reverse circulation tools

    Power swivel

    Rated torque

    1300 N.m

    Rated rev.

    0~150 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    2000 kg

    Max. Push-down Force

    7 kN

    Max. hoisting speed

    0.73 m/s

    Hydraulic system

    Working pressure

    200 bar

    Engine power (Gasoline)

    27hp / 3600r/min

    Weight

    Max weight of part

    ≤79 kg

    Total weight

    ≤370kg

    Overall dimension

    When working 1585×1100×2715

    HD-40B MAN PORTABLE DRILLING RIG

    HD-40B MAN PORTABLE DRILLING RIG | Seismic Geophysical Equipment | Drilling machine for Oil and Gas Industries | 40 Meter Mud Drilling machine | For Rent | For Lease | Sell | For Sale
    HD-40B

    All of our modular designed portable drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of portable drilling rig:

    1. This portable drilling rig is applicable to work in mountains, loess, hills, plain, forests, Gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects.
    2. Optional drilling methods includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling, casing drilling (with casing puller) and reverse circulation drilling. Adapt to different drilling operation with relative drilling method according to field formation.
    3. Modular designed structure achieves assembling and disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices. So it is convenient to carry.
    4. The system chooses REXROTH hydraulic pump, HAWE hydraulic valve and WHITE/DANFOSS hydraulic motor. Hydraulic system assures and improves the operating reliability and safety of drilling rig.
    5. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensures perpendicularity of the hole.
    7. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth

    Pipe(diameter×length)

    Hole diameter

    Mud drilling

    40 m

    φ60×1500

    75/90mm

    Air drilling/Hammer drilling

    40 m

    φ60×1500

    75/82mm

    Screw drilling

    20 m

    φ50×φ90×1500

    90mm

    Reverse circulation drilling

    Φ 107xΦ70x1500mm

    Power swivel

    Rating torque

    1300 N.m

    Rated speed

    0~150 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    2000 kg

    Max. Push-down Force

    7 kN

    Max. hoisting speed

    0.73 m/s

    Hydraulic system

    Working pressure

    200 bar

    Engine power

    27hp / 3600r/min

    Weight

    Max. Sets

    ≤100 kg

    Overall unit

    ≤415 kg

    Overall dimension

    About 1700×1400×3050 /When running

    Piston mud pump

    Gasoline or diesel power option

    Pressure

    14 bar

    Displacement

    120 L/min

    Weight

    ≤115 kg

    Air screw compressor

    2 sets

    Total displacement

    3.6~4.2 m3/min

    Pressure

    0.8 MPa

    Weight

    ≤380 kg (Two Sets)

    Power

     Kohler 27hp

    HD-40C MAN PORTABLE DRILLING RIG

    HD-40C MAN PORTABLE DRILLING RIG |40 Meter Mud drilling | 20 Meter Screw drilling |40m Air drilling/Hammer drilling | Seismic Geophysical Equipment | Drilling machine | Oil and Gas Service | For Rent | Lease | Sale
    HD-40C

    All of our modular designed portable drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of portable drilling rig:

    1. This portable drilling rig is applicable to work in mountains, loess, hills, plain, forests, Gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects.
    2. Optional drilling methods includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling, casing drilling (with casing puller) and reverse circulation drilling. Adapt to different drilling operation with relative drilling method according to field formation.
    3. Modular designed structure achieves assembling and disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices. So it is convenient to carry.
    4. The system chooses REXROTH hydraulic pump, HAWE hydraulic valve and WHITE/DANFOSS hydraulic motor. Hydraulic system assures and improves the operating reliability and safety of drilling rig.
    5. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensures perpendicularity of the hole.
    7. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth

    Pipe (dia.*length.)(mm)

    Drilling bit

    Mud drilling

    40 m

    φ60×1500

    75-90mm

    Air drilling

    40 m

    φ60×1500

    75-82mm

    Auger drilling

    20 m

    φ50×φ90×1500

    90mm

    Casing drilling

    20 m

    Ф108×Ф60×1500mm

    110mm

    Power swivel

    Rated torque

    1050 N.m

    Rated rev.

    0~150 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    2000 kg

    Max. Push-down Force

    7 kN

    Max. hoisting speed

    0.73 m/s

    Hydraulic system

    Working pressure

    215  bar

    Engine power (Gasoline)

    27hp / 3600r/min

    Net Weight

    Max weight of part

    ≤75 kg

    Total weight

    ≤325 kg

    Overall dimension

    When working 1500×960×2750

    HD-40E MAN PORTABLE DRILLING RIG

    HD-40E MAN PORTABLE DRILLING RIG, Geophysical Drilling Equipment, Seismic Geophysical Equipment Drilling machine for rental and lease, drill rig, Seismic drill rig
    HD-40E

    All of our modular designed portable drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of portable drilling rig:

    1. This portable drilling rig is applicable to work in mountains, loess, hills, plain, forests, Gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects.
    2. Optional drilling methods includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling, casing drilling (with casing puller) and reverse circulation drilling. Adapt to different drilling operation with relative drilling method according to field formation.
    3. Modular designed structure achieves assembling and disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices. So it is convenient to carry.
    4. The system chooses REXROTH hydraulic pump, HAWE hydraulic valve and WHITE/DANFOSS hydraulic motor. Hydraulic system assures and improves the operating reliability and safety of drilling rig.
    5. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensures perpendicularity of the hole.
    7. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth

    Pipe (dia.*len.) (mm)

    Drilling bit

    Mud drilling

    40 m

    φ60×1500

    75/90mm

    Air drilling

    40 m

    φ60×1500

    75/82mm

    Auger drilling

    20 m

    φ50×φ90×1500

    90mm

    Casing drilling

    20 m

    Ф108×Ф60×1500mm

    110mm

    Power swivel

    Rated torque

    1350 N.m

    Rated rev.

    0~135 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    2000 kg

    Max. Push-down Force

    7 kN

    Max. hoisting speed

    0.77 m/s

    Hydraulic system

    Working pressure

    205 bar

    Engine output power

    27hp / 3600r/min

    Weight

    Max weight of part

    ≤83 kg

    Total weight

    ≤396 kg

    Operating state dimension

    About 1614×1100×2870

    HD-40G MAN PORTABLE DRILLING RIG

    drill rig, Seismic drill rig, HD-40G MAN PORTABLE DRILLING RIG,Man Portable Drilling Services & Support, For Sale , For Rent, Lease
    HD-40G

    HD-40G man portable drilling rig is a kind of rig with light weight, which is equipped with centrifugal type mud pump and operated manually. It is applicable to be used in farmland, river network and brush area to drill blast hole in seismic prospecting project. It has optional collocation to meet user’s requirements!

    Collocation optional:

    1. Hand-held disc, base, swivel, centrifugal mud pump with air cooled type Petrol engine, hosepipes, drilling pipe, bits, tools and spare parts.
    2. U type water swivel, centrifugal mud pump with air cooled type Petrol engine, hosepipes, drilling pipe, bits, tools and spare parts.

    New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    Applicable formation: Farmland, river network and brush area.
    Applications: The blast hole, seismic shot hole.
    Advantages: light weight, easy to operate, and high efficiency.

    Main Specification:

    Rig model

    HD-40G

    Drilling method

    Mud drilling

    Max drilling depth

    40 m

    Drilling hole diameter

    φ75-100 (mm) /3”-4”

    Drilling pipe

    OD.*thickness*length  (mm)

    Φ45*6*3000

    Drilling bit

    Three finger diamond type bit 4 inch (100mm)

    Mud pump

    Centrifugal type pump/

    gasoline engine

    Flow rate (L/min)

      1400

    Weight   (kg)

    43

    L*W*H  (mm)

    600*471*550

    HD-80 MAN PORTABLE DRILLING RIG

    HD-80 MAN PORTABLE DRILLING RIG, drill rig,S eismic drill rig, Drilling Services & Support,HD-80 MAN PORTABLE DRILLING RIG For Rent, For Lease, Sale
    HD-80

    All of our modular designed portable drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of portable drilling rig:

    1. This portable drilling rig is applicable to work in mountains, loess, hills, plain, forests, Gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects.
    2. Optional drilling methods includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling, casing drilling (with casing puller) and reverse circulation drilling. Adapt to different drilling operation with relative drilling method according to field formation.
    3. Modular designed structure achieves assembling and disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices. So it is convenient to carry.
    4. The system chooses REXROTH hydraulic pump, HAWE hydraulic valve and WHITE/DANFOSS hydraulic motor. Hydraulic system assures and improves the operating reliability and safety of drilling rig.
    5. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensures perpendicularity of the hole.
    7. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth

    Pipe (diameter*length) (mm)

    Hole diameter

    Mud drilling

    80 m

    φ60×1500

    75/90mm

    Air drilling/Hammer drilling

    40 m

    φ60×1500

    75/82mm

    Screw drilling

    30 m

    φ50×φ90×1500

    90mm

    Reverse circulation drilling

    30 m

    Ф107×Ф70×1500mm

    110mm

    Power swivel

    Rating torque

    1520 N.m

    Rated speed

    0~170 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    2000 kg

    Max. Push-down Force

    7 kN

    Max. hoisting speed

    0.73 m/s

    Hydraulic system

    Working pressure

    250 bar

    Engine power

    27hp / 3600r/min

    Weight

    Max. Sets

    ≤105 kg

    Overall unit

    ≤430 kg

    Overall dimension

    About 1700×1400×3050 /When running

    Piston mud pump

    Gasoline or diesel power option

    Pressure

    14 bar

    Displacement

    120 L/min

    Weight

    ≤115 kg

    Air screw compressor

    Total displacement

    5~6 m3/min

    Pressure

    0.8 MPa

    Weight

    ≤400 kg (Two Sets)

  • Crawler Drilling Rig

    HD-C20 MECHANICAL DRIVE CRAWLER DRILLING RIG

    HD-C20 MECHANICAL DRIVE CRAWLER DRILLING RIG, Heerental, Crawler Drilling Rig, Seismic Drill, Seismic Drilling Equipment for rent, for lease, for sale, Seismic Geophysical equipment, All over World, UAE, USA, China, India, Oman, Iran, Saudi Arabia, Abudhabi, Bahrain, Kuwait
    HD-C20

    Our drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of drilling rig:

    1. With different combination methods, the drilling rig has kinds of functions as air drilling, air hammer drilling, auger drilling, mud drilling for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects. It is suitable for field formation like marsh, beach, snow, grasslands, snow, forests, swamps, the seasonal farmland etc.
    2. We select the mature products of well-known specialized company of the world, for example: Kubota, HAWE, STAUFF, Eaton and so on, to ensure optimal performance and high reliability of drilling rig. Hydraulic driven achieves simple operation and easy maintenance.
    3. The chassis is mechanical gear shift type. It has high speed, low ground pressure, strong adaptability to ground surface. It meets the demand of vegetation protection and green construction. And reduces numbers of operator and the safety risk.
    4. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    5. The drilling rig is equipped with the balance valve and relief valve to ensure steady going up & down with load, improves the reliability and safety of drilling rig.
    6. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth (m)

    Pipe(diameter*length) (mm)

    The method of throwing dynamite

    Hole diameter

    Mud drilling (With mud pump)

    20

    φ60*1500

    After moving the tools

    3”,3.5”

    Air (Hammer) drilling (With compressor)

    15

    φ60*1500

    After moving the tools

    Φ82 mm

    Casing drilling (With compressor and Hammer)

    10

    φ50*1500 +

    φ102*1500

    Center of the casing

    Φ102 mm

    Power swivel

    Rating torque

    540 N.m

    Rated speed

    0~135 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    1000 kg

    Max. Push-down Force

    2 kN

    Max. hoisting speed

    0.6 m/s

    Hydraulic system

    Working pressure

    180 bar

    Engine power

    14 hp / 3600r/min

    Weight

    Chassis weight

    ≤280kg

    Total weight

    ≤600 kg

    Rubber crawler

    Dimension

    1200X280X360X2

    Ground pressure

    <1.9 Psi

    The Travel parameters

    Travel speed

    Forward

    1.2~6.8 km/hour, four speed

    Reverse

    0.3~1.0km/hour, two speed

    Maximum traction force

    50 N

    Maximum load

    400kg

    Climbing angle

    30%

    Tilting slope

    >30°

    Roll back angle

    >30°

    Overall dimension

    About 2150×900×2650 /When working

    About 2550×900×1450 /When moving

    Piston mud pump

    Gasoline or diesel power option

    Pressure

    14 bar

    Displacement

    120 L/min

    Weight

    ≤115 kg

    Air screw compressor

    Total displacement

    3.6~4.2 m3/min

    Pressure

    0.8 MPa

    HD-C30 CRAWLER DRILLING RIG

    HD-C30 CRAWLER DRILLING RIG , Onshore Drilling Equipment, Drilling Equipment for Oil and gas Services, Geophysical Seismic drilling eq
    HD-C30

    Our drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of drilling rig:

    1. With different combination methods, the drilling rig has kinds of functions as air drilling, air hammer drilling, auger drilling, mud drilling for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects. It is suitable for field formation like marsh, beach, snow, grasslands, snow, forests, swamps, the seasonal farmland etc.
    2. It uses full-hydraulic driven, simple to operate and easy to maintain. We select the mature products of well-known specialized company of the world, for example: Kubota, HAWE, STAUFF, Eaton and so on, to ensure optimal performance and high reliability of drilling rig.
    3. The rig is equipped rubber crawler chassis which is driven by hydraulic system. Walking and drilling use the remote control. It has high speed, low ground pressure, strong adaptability to ground surface. It meets the demand of vegetation protection and green construction. And reduces numbers of operator and the safety risk.
    4. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    5. The drilling rig is equipped with the balance valve and relief valve to ensure steady going up & down with load, improves the reliability and safety of drilling rig.
    6. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth (m)

    Pipe(diameter*length) (mm)

    Explosive method

    Hole diameter (mm)

    Mud drilling

    30

    Φ60*1500

    After lifting the drills

    3”, 3.5”

    Air(Hammer) drilling

    30

    Φ60*1500

    68/82

    Auger Drilling

    20

    Φ100×60×3×1500

    100

    Casing drilling

    20

    Φ60*1500+φ102*1500

    Center of the casing

    82

    Power swivel

    Rating torque

    680 N.m

    Rated speed

    0~260 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    1500 kg

    Max. Push-down Force

    10 kN

    Max. hoisting speed

    1.24 m/s

    Hydraulic system

    Working pressure

    205 bar

    Engine power

    270 hp/3600r/min

    Weight

    Chassis weight

    ≤375kg

    Total weight

    ≤1200 kg

    Rubber crawler

    Dimension

    1600X230X360X2

    Ground pressure

    <24  kPa

    The Travel parameters

    Travel speed

    Forward

    6.8 km/hour, Remote operation

    Reverse

    3.4 km/hour, Manual operation/wire operation

    Maximum traction force

    9kN

    Maximum load

    400kg

    Climbing angle

    30%

    Tilting slope

    >30°

    Roll back angle

    >30°

    Overall dimension

    About: 1750×1250×2830 When working

    About: 2350×1250×1500 When moving

    HD-C30A Crawler Drilling Rig

    HD-C30A Crawler Drilling Rig, drilling equipment for sale, for rent, rental company,  UAE, USA, Russia, Soudi Arabia, OPEC, Canada, Iraq, China, UAE, Barzil, Iran, Kuwait, Nigeria, Kazakhsthan, Norway
    HD-C30A

    Our drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of drilling rig:

    1. With different combination methods, the drilling rig has kinds of functions as air drilling, air hammer drilling, auger drilling, mud drilling for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects. It is suitable for field formation like marsh, beach, snow, grasslands, snow, forests, swamps, the seasonal farmland etc.
    2. It uses full-hydraulic driven, simple to operate and easy to maintain. We select the mature products of well-known specialized company of the world, for example: Kubota, HAWE, STAUFF, Eaton and so on, to ensure optimal performance and high reliability of drilling rig.
    3. The rig is equipped rubber crawler chassis which is driven by hydraulic system. Walking and drilling use the remote control. It has high speed, low ground pressure, strong adaptability to ground surface. It meets the demand of vegetation protection and green construction. And reduces numbers of operator and the safety risk.
    4. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    5. The drilling rig is equipped with the balance valve and relief valve to ensure steady going up & down with load, improves the reliability and safety of drilling rig.
    6. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth (m)

    Pipe(diameter*length) (mm)

    The method of throwing dynamite

    Hole diameter

    Mud drilling (With mud pump)

    30

    Φ60*1500

    After moving the tools

    3”, 3.5”

    Air(Hammer) drilling (With compressor)

    30

    Φ60*1500

    After moving the tools

    68/82mm

    Auger Drilling

    20

    Ф100*1500

    After moving the tools

    Φ100 mm

    10

    Φ120*1500

    Center of the pipe (O.D. of dynamite≤60mm)

    Φ120 mm

    Casing drilling (With compressor and Hammer)

    20

    Φ50*1500 +φ102*1500

    Center of the pipe

    (O.D. of dynamite≤60mm)

    Φ102 mm

    Power swivel

    Rating torque

    1300  N.m

    Rated speed

    0~150 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    2000 kg

    Max. Push-down Force

    10 kN

    Max. hoisting speed

    0.73 m/s

    Hydraulic system

    Working pressure

    180 bar

    Engine power

    25hp /3600rpm  /gasoline engine

    Weight

    Chassis weight

    ≤420kg

    Total weight

    ≤1200 kg

    Rubber crawler

    Dimension

    1600X280X360X2

    Ground pressure

    <24  kPa

    The Travel parameters

    Travel speed

    Forward

    0~6 km/hour /Manual Operation

    Reverse

    0~6 km/hour

    Maximum traction force

    9 kN

    Maximum load

    400kg

    Climbing angle

    30%

    Tilting slope

    >30°

    Roll back angle

    >30°

    Overall dimension

    About :2320×1320×2900  When working

    About : 2690×1320×1500 /When moving

    HD-C100A Mechanical Drive Crawler Drilling Rig

    HD-C100A Mechanical Drive Crawler Drilling Rig for rent, Drilling equipment, Seismic source finder
    HD-C100A

    Our drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of drilling rig:

    1. With different combination methods, the drilling rig has kinds of functions as air drilling, air hammer drilling, auger drilling, mud drilling for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects. It is suitable for field formation like marsh, beach, snow, grasslands, snow, forests, swamps, the seasonal farmland etc.
    2. The rig is equipped with rubber crawler chassis which is driven by mechanical transmission. Rocker driving walking. Driver’s seat is with sunshade.
    3. We select the mature products of well-known specialized company of the world, for example: Kubota, HAWE, STAUFF, Eaton and so on, to ensure optimal performance and high reliability of drilling rig.
    4. New model design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    5. The drilling rig is equipped with the balance valve and relief valve to ensure steady going up & down with load, improves the reliability and safety of drilling rig.
    6. It is also equipped with safety and warning mark to meet the requirement of H.S.E. and improves the level of security of the rig effectively and reduces accident rate.
    Main Specification:

    Drilling method

    Depth (m)

    Pipe

    (diameter*length) (mm)

    Explosive

    method

    Hole diameter (mm)

    Mud drilling

    100

    Φ60*3000

    After lifting the drills

    3”,3.5”

    Air (Hammer) drilling

    40

    Φ60*3000

    68/82mm

    Casing drilling

    40

    Φ50*1500 + φ102*1500

    Center of the casing

    82

    Power swivel

    Rating torque

     1300N.m

    Rated speed

    0~365 r/min

    Hoisting/Push-down system

    Max. hoisting weight

    1300 kg

    Max. Push-down Force

    20 kN

    Max. hoisting speed

    1.8 m/s

    Hydraulic system

    Working pressure

    210 bar

    Engine power

    40 hp / 3600r/min /diesel

    Weight

    Chassis weight

    ≤800kg

    Total weight

    ≤1950 kg

    Rubber crawler

    Dimension

    2000X350X450X2

    Ground pressure

    <24  kPa

    The Travel parameters

    Travel speed

    Forward

    1.2~15 km/hour,four speed

    Reverse

    0.3~2.0 km/hour,two speed

    Maximum traction force

    50 N

    Maximum load

    400kg

    Climbing angle

    30%

    Tilting slope

    >30°

    Roll back angle

    >30°

    Overall dimension

    About: 2900X1850X3900  / When working

    About::2900X1850X1600   /When moving

    Piston mud pump

    diesel power option

    Pressure

    20 bar

    Displacement

    230 L/min

  • Tractor Drilling Rig

    HD-T100 Tractor Drilling Rig

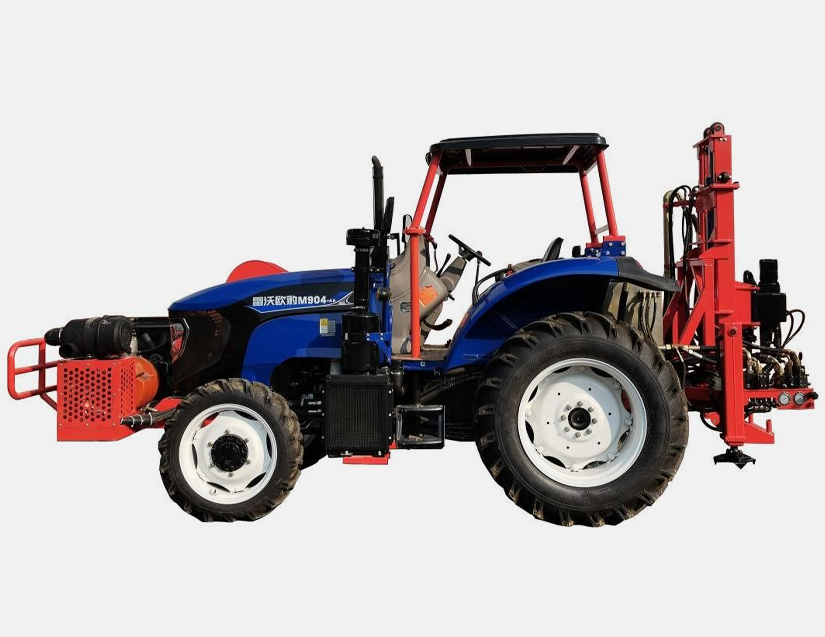

    HD-T100 Tractor Drilling Rig, 100Meter Mud Drilling Equipment,40Meter Air drilling/Hammer drilling, Seismic Geophysical Equipment for rent and sale, lease
    HD-T100

    HD-T100 Drilling Rig is a kind full hydraulic geophysical exploration drilling rig mounted on the chassis of a four-wheel drive tractor with good off-road performance. It is mainly applicable to the drilling operation in the loose gravel, mud flat, marsh, grasslands, mountain front, Gobi and hills for seismic prospecting, mine survey, geologic framework investigation etc. such drilling projects. The designed reasonable structure makes the operation simple and convenient.

    Features of portable drilling rig:

    1. HD-T100 Drilling rig choose four-wheel drive tractor chassis.
    2. Applicable to drilling in loose gravel, mud flat, marsh, grasslands, mountain front, Gobi and hills such areas.
    3. The hydraulic system is powered from the rear PTO shaft of the chassis engine. Air compressor (Option: Mud pump) is powered from the front PTO of the chassis engine. Reduce energy transformation loss. High efficient and functional. Electromagnetic clutch is used to control the power transmission.
    4. Drilling method includes air drilling, DTH hammer drilling, mud drilling (option), auger drilling and casing drilling (with casing puller).
    5. Drilling rig equipped with power swivel with two functions of air and water drilling,it is new model design with the separate structure of circulation drilling fluid and bearing chamber which will reduces damage probability of bearing. Clearance between seals is adjustable, so maintenance interval is long.
    6. Two rear hydraulic legs assure the drilling rig working steadily and improve the drilling performance.
    7. Quick connecting air compressor and mud pump system saves time and effort and improves efficiency
    8. There is drilling pipe box at the back of tractor and reduces labor intensity.
    Main Specification:

    Drilling method

    Depth

    Pipe (diameter*length)

    Explosive method

    Hole diameter

    Mud drilling

    100m

    φ60x2800

    After lifting the drilling pipes

    75/90

    Air drilling/Hammer drilling

    40m

    φ60x2800

    After lifting the drilling pipes

    75/82

    Casing drilling

    12m

    φ89x2000

    Center of the drilling pipe

    102

    20

    φ102x1500

    Center of the casing

    102

    Multifunctional power swivel

    Sonic vibrate drilling

    Rating torque

    1310 N.m

    Rated speed

    0~390 r/min

    Max. vibrate frequency

    180 Hz

    Max vibrate force

    194 kN

    Hydraulic system

    Working pressure

    180bar

    Hoisting/Push-down system /

    Hydraulic cylinder control double speed slid frame

    Max. hoisting weight

    2800 kg

    Max. Push-down Force

    14 kN

    Max. hoisting speed

    0.85 m/s

    Machine stabilization

    Two rear jacks

    Pipe clamp

    Two direction hydraulic clamp /

    Single cylinder clamp (options)

    Unscrew tool

    Swivel hydraulic control slide fork /

    Well-top hydraulic clamp(options)

    Engine power

    51.4kW/2400r/min

    Air screw compressor /Standard

    Displacement

    5.6 M3/min

    Pressure

    7 bar

    Piston mud pump /Options

    Displacement

    200 L/min

    Pressure

    40 bar

    Overall parameter

    weight

    ≤5000 kg

    Dimension (LxWxH)

    5000X1200X3300

  • Truck Mounted Drilling

    HD-T200 Truck Mounted Drilling Rig

    HD-T200 Truck Mounted Drilling Rig, terrain drilling equipment for rent, Geophysical seismic driling equipment, for rent and sales
    HD-T200

    Our drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of drilling rig:

    1. The rig adapts to deep well drilling in the complicated terrain, such as: the desert, gobi, grasslands, swamps, beaches, seasonal waters, etc. The piston air compressor (the screw air compressor option) and the piston mud pump are installed, they are used to complete the blasting holes, cement paste (water) grouting holes, monitoring holes or well drilling constructions with the direct circulation drilling method. It is a powerful truck-mounted rig of comprehensive drilling ability.
    2. The rig is mounted on a 4X4 desert off-road vehicle chassis, and the drilling power is obtained directly from the chassis PTO. A combination of mechanical and hydraulic transmission, manual control and air-pressure control operation is installed in the rig. The machine has the feature of simple structure, flexible and simple operation and efficient construction ability.
    3. The mud pump and the air compressor both are controlled by the pneumatic clutch, which is powered of the undercarriage air source and easy to operate.
    4. The constant hydraulic system is used to control the rig, the ordinary reversing valve of large flow is also used, it ensures that the rig is easy to maintain, reliable and long lasting, be of lower cost.
    5. The automatic tilt mechanism of the drill head is provided, which greatly improves the efficiency of screwing and unscrewing the drill tools and reduces the labor intensity of workers. According to the actual record, the time is cut by half on the process of unscrewing the drill tools after completed the well.
    6. The enhanced truss structure mast is installed, the chain wheel assembly is located in the upper place which ensures that the hoisting system is safely.
    Main Specification:

    Drilling method

    Depth

    Pipe (diameter×length)

    Hole diameter

    Mud drilling

    200 m

    Φ63×4500

    114mm

    Air drilling/Hammer drilling

    150 m

    Φ63×4500

    114mm

    Power swivel

    Rated torque

    4000 N.m

    Rated speed

    0~335 r/min

    Hydraulic system

    Working pressure

    190bar

    Push down/ Hoisting system /

    Hydraulic motor+chain

    Max. hoisting weight

    4000 kg

    Max. push down Force

    32 kN

    Max. hoisting speed

    1.2 m/s

    Derrick

    Square section trusses frame

    Machine stabilization

    Two rear jacks

    Pipe clamp

    Mechanical clamp /Hydraulic clamp (options)

    Unscrew tool

    Mechanical slide fork /Hydraulic slide fork (options)

    Air piston compressor /Standard

    Displacement

    12.5 M3/min

    Pressure

    8 bar

    Piston mud pump /Options

    Displacement

    600 L/min

    Pressure

    80 bar

    Vehicle

    Power

    231kW

    Speed

    2300rpm

    Overall dimension

    length×wide×high

    When move

    10300×3600×4200

    When running

    8700×3600×8800

    Overall weight

    ≤15800 kg

    HD-T300 Truck Mounted Integrated Multi-Functional Drilling Rig

    HD-T300 Truck Mounted Integrated Multi-Functional Drilling Rig, Used Drilling Equipment for seismic geophysical source, drilling machine for geophysical explosive, Drilling vehicle for rent, Drilling vehicle for lease
    HD-T300

    Our drilling rigs are made strictly according to general industrial design standards and fields requirements. Optional methods will meet kinds of drilling formation in field and satisfy our clients. The most advantage is that our independent R&D department allows us to do OEM, so we will design and modify the drilling rig as per clients’ requirements according to drilling field formation situation.

    Features of drilling rig:

    1. The rig is mounted on a 6X4 or 6X6 off-road vehicle chassis, and the drilling power is obtained from the chassis PTO shaft directly. A combination of mechanical and hydraulic transmission, manual control and remote control operation is used. The machine has the feature of simple structure, flexible and simple operation and efficient construction ability.
    2. The rig can be used to complete well drilling with the direct circulation method in anywhere it can reach, such as the water well drilling constructions, the geological coring drilling, cement paste (water) grouting holes, monitoring holes and the blasting holes and so on. It is a powerful rig of comprehensive drilling ability.
    3. The rig is driven by PTO shaft of the chassis engine via a gear box; the air compressor is driven via a universal shaft from gear box; the mud pump and the rig are driven by hydraulic system from gear box.
    4. The mud pump is driven by the closed hydraulic system, reduce the interference of other systems, reducing the volume of hydraulic system.
    5. Two front and two rear stabilizer jacks are installed in the rig.
    6. The structure of the box mast is simple, the slide of the power swivel carriage is multi-stage adjustable.
    7. Chassis option: TieMa in Sinotruck of china, North Benz in Sinotruck of china, Volvo Truck, Man Truck.
    Main Specification:

    Drill tools

    Drill pipe (diameter×length)    mm

    Ф76×6000

    Drill pipe (diameter×length)    mm

    Ф114×6000

    Power swivel

    Output torque N.m

    6000 / 8000

    Rotary speed r/min

    145 /110

    Feed system

    Feed/hoisting force    kN

    120

    Hoisting speed m/s

    0~0.71

    Rod clamp

    Clamping force kN

    122

    Unsrewing torque  N.m

    12400

    Hydraulic system

    Rotary speed of hydraulic pump  r/min

    1600

    Working pressure

    Rotation rate MPa

    25

    Feed MPa

    25

    Mud pump system MPa

    25

    Auxiliary system  MPa

    20

    Mud pump

    Displacement L/min

    850

    Pressure  MPa

    4

    Screw air compressor

    Displacement   M3/min

    20

    Pressure  bar

    19

    Chassis  (6*6)

    Diesel power  HP

    410-450

    Max. bearing weigh kg

    25000
